Description

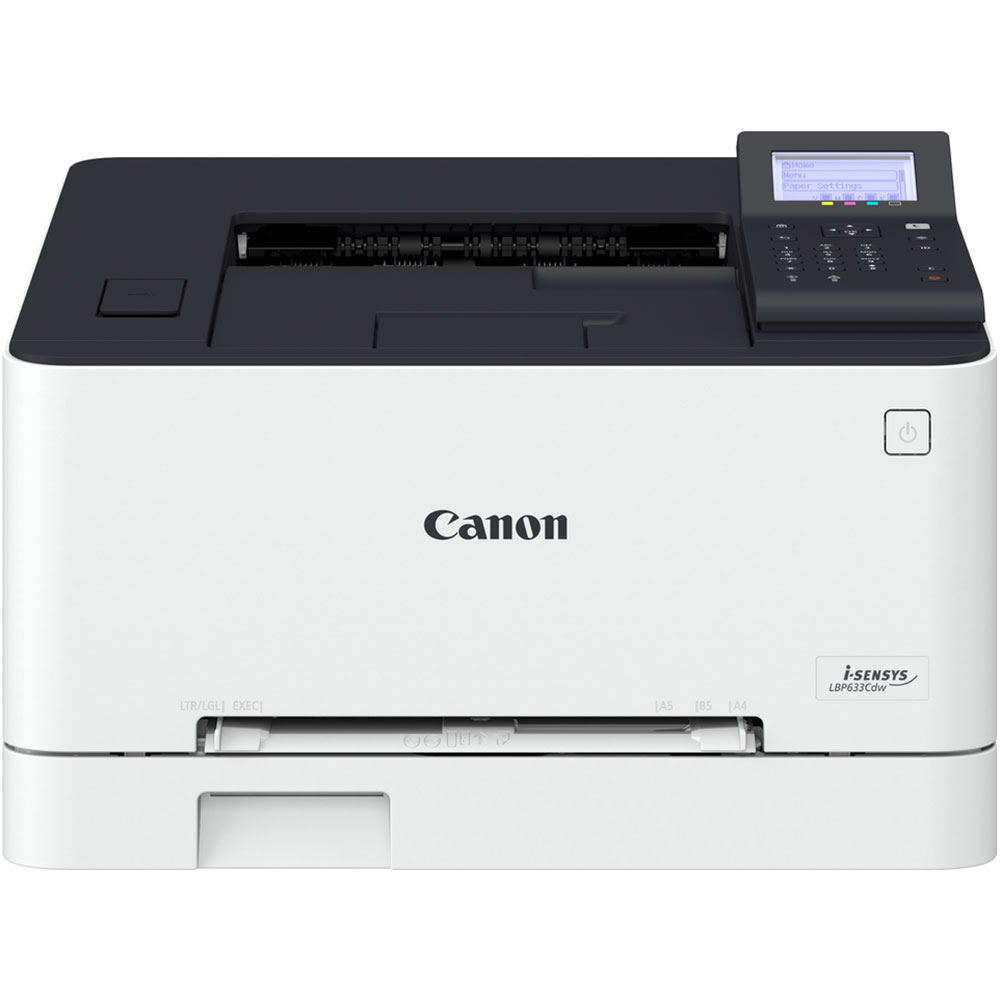

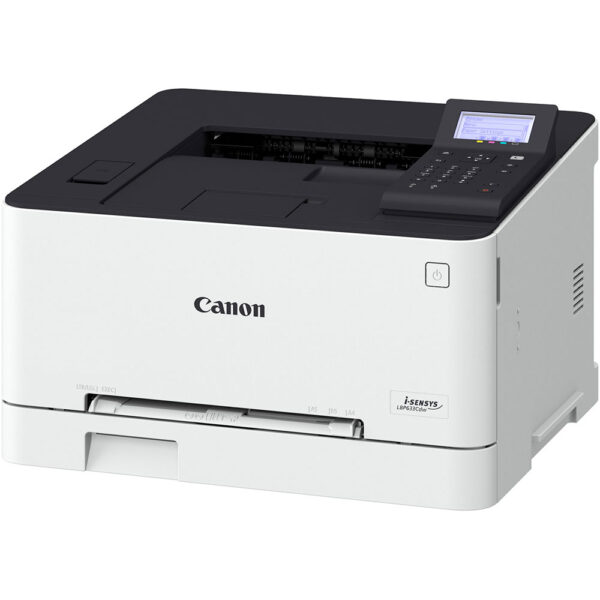

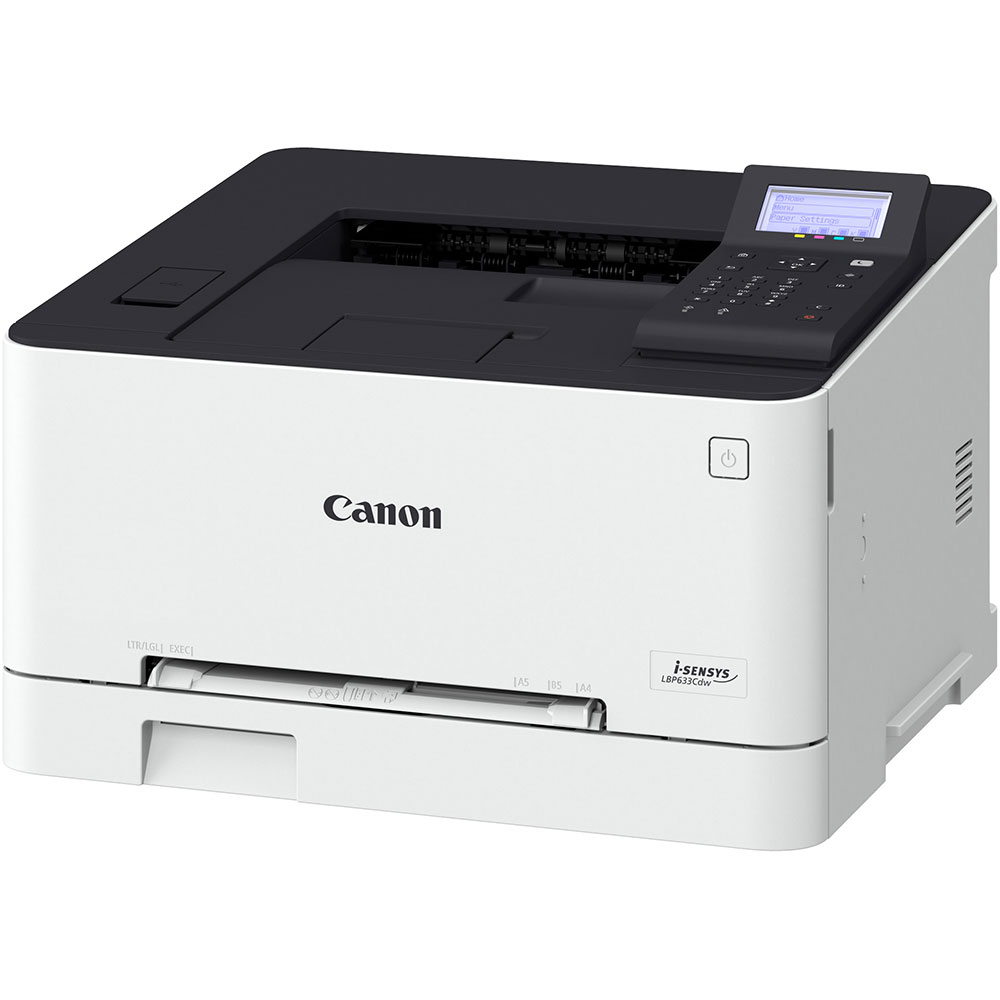

Canon i-SENSYS LBP633Cdw (5159C001AA)

General Specifications

• Machine Type
  Colour laser single function
• Available Functions
  Print

Print Specifications

• Print Speed
  Single sided: Up to 21 ppm (A4)
  Up to 38 ppm(A5-Landscape)
  Double sided: Up to 12.7 ipm (A4)
• Printing Method
  Colour laser beam printing
• Print Resolution
  Up to 1200 x 1200 dpi
• Warm-up Time
  Approx. 13 seconds or less from power on
• First-Print-Out Time
  Colour approx.: 10.5 seconds or less
  Mono approx.: 10.4 seconds or less
• Printer Languages
  UFRII, PCL5c³, PCL6, Adobe® PostScript³
• Fonts
  45 PCL fonts, 136 PS fonts
• Print Margins
  5 mm-top, bottom, left and right
• Advanced Printing Features
  Secure Print
  Print from USB memory key (JPEG/TIFF/PDF)
  iOS: AirPrint, Canon PRINT Business app
  Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app

Media Handling

• Paper Input (Standard)
  250-sheet cassette
  1-sheet manual feed slot
• Maximum Paper Input Capacity
  Up to 251 sheets
• Paper Output
  100-sheet
• Media Types
  Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope
• Media Sizes
  Cassette:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 76.2 x 127 mm Max. 216.0 x 355.6 mm.

  Multi-purpose tray:
  A4, A5, A5 (Landscape), B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch), Custom sizes: Min 76.2 x 127 mm Max. 216.0 x 355.6 mm.

• Media Weights
  Cassette: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
  Multi-purpose tray: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
• Double Sided Printing
  Automatic
  Cassette:
  A4, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
  Custom size – Min. 182 x 257 mm Max. 216.0 x 355.6 mm
  60 to 200 g/m²

Interface & Software

• Interface Type
  USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility
  Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022
  Mac OS X version 10.11 & up
  Linux⁴
• Network Protocol
  Print:
  TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

  Management:
  SNMPv1, SNMPv3 (IPv4, IPv6)

  Security: TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
  Security (wireless):
  Infrastructure Mode:
  WEP (64/128 bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
  Access Point Mode:
  WPA2-PSK (AES)

• Software and Printer Management
  Remote User Interface (RUI),
  Department ID Management,
  Toner Status Tool,
  iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
  eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

General Features

• Recommended Monthly Print Volume
  250 – 2,500 pages per month
• Duty Cycle
  Max. 30,000 pages per month¹
• Processor Speed
  800MHz x 2
• Memory
  1GB
• Control Panel
  5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad
• Dimensions with Trays (W x D x H)
  430 mm x 418 mm x 287 mm
• Weight
  Approx. 16.1 kg
• Operating Environment
  Temperature: 10 to 30ºC (50 to 86ºF)
  Humidity 20 to 80% RH (no condensation)
• Power Source
  220-240V (±10%) 50/60Hz (±2Hz)
• Power Consumption
  Maximum: Approx. 850W or less
  Active printing: Approx. 390W
  Standby: Approx. 8.5W or less
  Sleep: Approx. 0.8W or less2
  Typical Electricity Consumption (TEC): 0.21 kWh/week⁷
• Noise Levels

  Sound power²
  Active: Simplex 66 dB or less / Duplex 65 dB or less
  Standby: Inaudible

  Sound pressure²
  Active: Simpelx 52 dB or less
  Duplex CL 52 dB or less / BW 51dB or less
  Standby: Inaudible

Consumables

• Cartridges
  Cartridge 067 Black (1,350 pages⁵)⁶
  Cartridge 067H Black (3,130 pages⁵)⁶
  Cartridge 067 Cyan (1,250 pages⁵)⁶
  Cartridge 067H Cyan (2,350 pages⁵)⁶
  Cartridge 067 Magenta (1,250 pages⁵)⁶
  Cartridge 067H Magenta (2,350 pages⁵)⁶
  Cartridge 067 Yellow (1,250 pages⁵)⁶
  Cartridge 067H Yellow (2,350 pages⁵)⁶
