TP-Link AC750 Wireless Dual Band Router - TL-ARCHER C24

KSh3,584.00

SKU: TL-ARCHER C24
  • High-Speed Wi-Fi—AC750 dual-band is ideal for HD video streaming, high-speed downloading.
  • Far-Reaching Coverage—4× antennas deliver far-reaching Wi-Fi and reliable connections.
  • Multi-Mode 3 in 1—Supports Router, Access Point, and Range Extender to add flexibilities.
  • Parental Controls—Manages when and how connected devices can access the internet.
  • Guest Network—Provides separate access for guests while securing the host network.
  • Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
  • IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
  • Compact and Mountable—Designed to conserve space and complement any décor.

SHARE:

Share on facebook
Share on twitter
Share on pinterest
SKU TL-ARCHER C24 Categories ,

Description

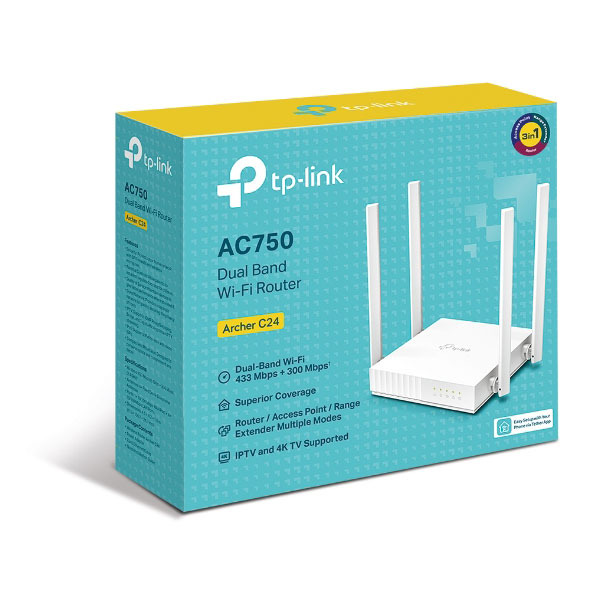

TP-Link AC750 Wireless Dual Band Router (TL-ARCHER C24)

TP-Link Archer C24, AC750 wireless Dual Band Router

AC Dual-band WiFi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz
band provides a far-reaching, stable connection to the rest of your devices.

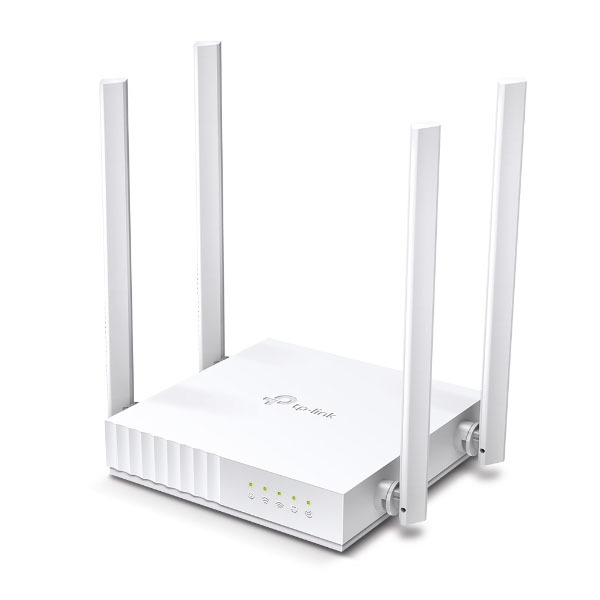

Featuring 4× diagonally-distributed antennas, Archer C24 cover more direction and expand the WiFi coverage,
supporting buffer-free surfing and stalling-free downloading.

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Archer C24’s system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and a 3-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.

Archer C24 goes through rigorous repeated testing to ensure a final product reliable under several strenuous environments. The final result: 8 randomly selected Archer C24 routers collectively tested for 1,936 hours.

TP-Link Archer C24, AC750 wireless Dual Band Router detailed specs in bullet form

  • Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
  • Wireless Speed: Up to 433Mbps on 5GHz + Up to 300Mbps on 2.4GHz
  • Frequency Range: 2.4GHz and 5GHz dual-band
  • Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
  • Antennas: 2 x Fixed Omni-Directional Antennas
  • Signal Rate:
    • 2.4GHz: Up to 300Mbps (dynamic)
    • 5GHz: Up to 433Mbps (dynamic)
  • WAN Port: 1 x 10/100Mbps Ethernet Port
  • LAN Ports: 4 x 10/100Mbps Ethernet Ports
  • Button: WPS/Reset Button, Wi-Fi On/Off Button
  • LED Indicators: Power, Internet, LAN, Wi-Fi/WPS
  • Wired/Wireless VLAN: Supports multiple SSIDs for secure network segmentation and guest network
  • Quality of Service (QoS): WMM (Wi-Fi Multimedia)
  • Guest Network: Provides a separate network for guest users
  • IPv6 Support: Yes
  • Parental Controls: URL Filtering, Time Controls
  • Dynamic DNS: DynDns, NO-IP
  • VPN Support: PPTP VPN Server, OpenVPN
  • Compatibility: Works with any cable or DSL modem
  • Power Supply: 9VDC/0.85A
  • Dimensions: 7.2 x 4.9 x 1.3 inches (182.95 x 124.65 x 32.1 mm)
  • Operating Temperature: 0°C
  • Storage Temperature: -40°C
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
Standards Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds AC750
5 GHz: 433 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range 2 Bedroom Houses


4× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity Medium


Dual-Band
Allocate devices to different bands for optimal performance

Working Modes Router Mode
Access Point Mode
Range Extender Mode
HARDWARE
Processor Single-Core CPU
Ethernet Ports 1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports
Buttons WPS/Reset Button
Power 9 V ⎓ 0.6 A
SECURITY
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS NO-IP
DynDNS
Management Tether App
Webpage
PHYSICAL
Dimensions (W×D×H) 4.5 × 4.2 × 1.0 in
(115 × 106.7 × 24.3 mm)
Package Contents Wi-Fi Router Archer C24
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
WiFi Reception Sensitivity 5GHz:
11a 54M: -76dBm;
11ac VHT20 MCS8: -71dBm;
11ac VHT40 MCS9: -66dBm;
11ac VHT80 MCS9: -62dBm
2.4GHz:
11g 54M: -76dBm;
11n HT20 MCS7: -73dBm;
11n HT40 MCS7: -71dBm
