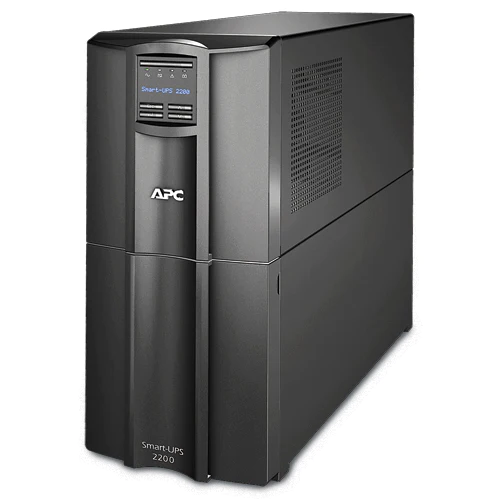

APC Smart-UPS 2200VA LCD 230V
APC Smart-UPS 2200VA LCD 230V
APC Smart-UPS 2200VA LCD 230V
APC Smart-UPS 2200VA LCD 230V

APC Smart-UPS 2200VA LCD 230V - SMT2200I

0 Review(s)

KSh154,560.00

SKU: SMT2200I
  • Cold-start capable
  • Energy Meter
  • Green mode
  • High online efficiency
  • Intuitive LCD Status Display
  • Predictive replace battery date
  • Pure sine wave output on battery
  • Sequenced network shutdown and reboot
  • Single switched outlet group
  • Smartslot
  • StruxureWare Central comptible
  • Temperature-compensated battery charging

SHARE:

Share on facebook
Share on twitter
Share on pinterest
SKU SMT2200I Category

Description

APC Smart-UPS 2200VA LCD 230V (SMT2200I)

OUTPUT

Max Configurable Power (Watts)

1.98kWatts / 2.2kVA
Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion

Less than 5%
Output Frequency (sync to mains)

50/60Hz +/- 3 Hz
Other Output Voltages

220, 240
Topology

Line Interactive
Waveform type

Sine wave
Transfer Time

6ms typical : 10ms maximum

INPUT

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations

160 – 286V
Input voltage adjustable range for mains operation

151 – 302V
Number of Power Cords

1
Other Input Voltages

220, 240

BATTERIES & RUNTIME

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time

3hour(s)
Replacement Battery

RBC55
Expected Battery Life (years)

3 – 5
RBC Quantity

1
Battery Charge Power (Watts)

260Watts
Battery Volt-Amp-Hour Capacity

783

COMMUNICATIONS & MANAGEMENT

Interface Port(s)

RJ-45 Serial, SmartSlot, USB
Control panel

Multi-function LCD status and control console
Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)

Yes
Available SmartSlot™ Interface Quantity

1

SURGE PROTECTION AND FILTERING

Surge energy rating

365Joules
Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

PHYSICAL

Maximum Height

435MM, 43.5CM
Maximum Width

197MM, 19.7CM
Maximum Depth

544MM, 54.4CM
Net Weight

50.2KG
Shipping weight

61.9KG
Shipping Height

699MM, 69.9CM
Shipping Width

381MM, 38.1CM
Shipping Depth

762MM, 76.2CM
Color

Black
Units per Pallet

9.0

ENVIRONMENTAL

Operating Temperature

0 – 40 °C
Operating Relative Humidity

0 – 95 %
Operating Elevation

0-3000meters
Storage Temperature

-15 – 45 °C
Storage Relative Humidity

0 – 95 %
Storage Elevation

0-15000meters
Audible noise at 1 meter from surface of unit

45.0dBA
Online thermal dissipation

275.0BTU/hr

CONFORMANCE

Approvals

CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
